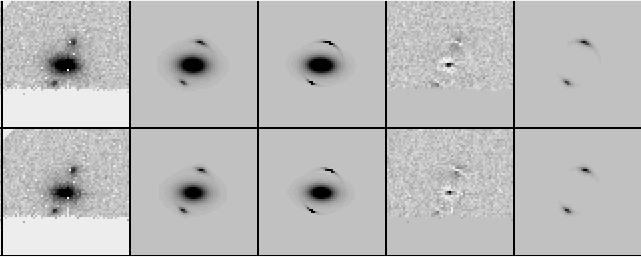

Observed | HST Model | MLE Model | Residual | Lensed source | Filter |
F814W i4.m0 | |||||
F606W v4.m0 |
Name | HST 14164+5215 | |||
Equatorial(J2000) | 14:16:25.2 | +52:14:31 | PAV3=32o.72 | |
HST WFPC2 | Groth :5090 1994-Mar-17 | |||
Dataset[g][x,y] | U26X0I01T[4][122,064] | |||
Field:id lens galaxy | u26xi:0017 | |||
HST WFPC2 Filter | F814W | F606W | ||
Exposure seconds | 4 x 1100 | 4 x 700 | ||
log (integrated S/N Ratio) | 3.42 | 3.32 | ||
Fitted Parameter | MLE | +/- rms | MLE | +/- rms |
Sky Mag. (arcsec2) | 22.247 | 0.003 | 22.799 | 0.003 |
Total Mag of lens galaxy | 20.78 | 0.01 | 21.80 | 0.02 |
X centroid 0".1 Pix | 122.43 | 0.04 | 122.67 | 0.05 |
Y centroid 0".1 Pix | 64.40 | 0.02 | 64.57 | 0.03 |
Half-light radius | 0".517 | 0".006 | 0".534 | 0".009 |
Orientation of light | 87o.5 | 0o.8 | 88o.2 | 1o.0 |
Axis Ratio of the light | 0.57 | 0.01 | 0.56 | 0.01 |
Mag. of lensed source | 26.67 | 0.09 | 27.40 | 0.05 |
Source X offset 0".1 | 0.43 | 0.02 | 0.40 | 0.02 |
Source Y offset 0".1 Pix | 0.91 | 0.03 | 0.87 | 0.04 |
Critical Radius | 1".090 | 0".003 | 1".099 | 0".003 |
Axis Ratio Lens mass | 0.96 | 0.01 | 0.98 | 0.01 |
Lens Orientation | - 45o.0 | 3o.4 | - 61o.5 | 5o.0 |
Source half-light | 0".013 | 0".003 | 0".010 | 0".001 |
Source Orientation | 0o.0 | Fixed | 0o.0 | Fixed |
Source Axis-Ratio | 1.00 | Fixed | 1.00 | Fixed |
Lens galaxy from MDS-Pipeline fit
