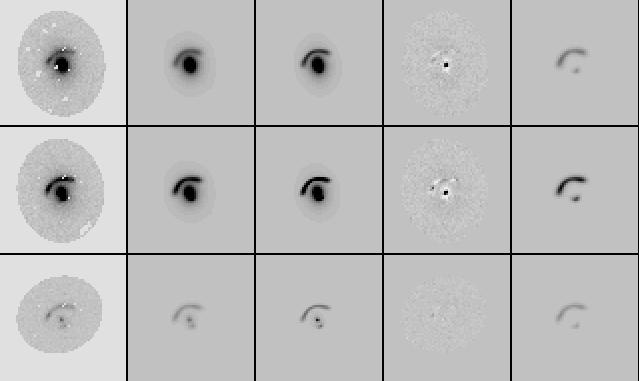

Observed | HST Model | MLE Model | Residual | Lensed source | Filter |
F814W i2.m0 | |||||
F606W v3.m0 | |||||
F450W b3.m0 |
Name | HST 15433+5352 | |||||
Equatorial(J2000) | 15:43:20.9 | +53:51:52 | PAV3=261o.77 | |||
HST WFPC2 | GRIFFITHS GO-PAR:5971 1995-Sep-03 | |||||
Dataset[g][x,y] | U2OQ3F01T[2][068,715] | |||||
MDS Field:id lens galaxy | uvd01:0014 | |||||
HST WFPC2 Filter | F814W | F606W | F450W | |||
Exposure seconds | 2 x 3000 | 3 x 3000 | 3 x 2933 | |||
log (integrated S/N Ratio) | 3.59 | 3.61 | 2.99 | |||
Fitted Parameter | MLE | +/- rms | MLE | +/- rms | MLE | +/- rms |
Sky Mag. (arcsec2) | 22.244 | 0.003 | 22.760 | 0.002 | 23.503 | 0.006 |
Total Mag of lens galaxy | 20.20 | 0.01 | 21.60 | 0.01 | 23.67 | 0.09 |
X centroid 0".1 Pix | 68.44 | 0.01 | 68.24 | 0.01 | 68.32 | 0.03 |
Y centroid 0".1 Pix | 714.61 | 0.01 | 714.68 | 0.01 | 715.01 | 0.05 |
Half-light radius | 0".456 | 0".009 | 0".453 | 0".002 | 0".385 | 0".044 |
Orientation of light | 10o.1 | 1o.3 | 9o.5 | 1o.8 | 19o.3 | 7o.2 |
Axis Ratio of the light | 0.75 | 0.01 | 0.78 | 0.01 | 0.67 | 0.08 |
Mag. of lensed source | 24.51 | 0.04 | 24.95 | 0.02 | 25.39 | 0.06 |
Source X offset 0".1 Pix | - 0.57 | 0.06 | - 0.42 | 0.03 | - 0.52 | 0.01 |
Source Y offset 0".1 | 1.58 | 0.04 | 1.54 | 0.02 | 1.55 | 0.04 |
Critical Radius | 0".588 | 0".006 | 0".576 | 0".002 | 0".584 | 0".004 |
Axis Ratio Lens mass | 0.50 | 0.02 | 0.56 | 0.01 | 0.55 | 0.01 |
Lens Orientation | 29o.0 | 1o.0 | 31o.2 | 0o.5 | 28o.3 | 0o.9 |
Source half-light | 0".147 | 0".003 | 0".146 | 0".003 | 0".155 | 0".007 |
Source Orientation | - 70o.2 | 2o.6 | - 66o.6 | 0o.9 | - 69o.3 | 1o.6 |
Source Axis-Ratio | 0.46 | 0.03 | 0.35 | 0.01 | 0.33 | 0.02 |
Lens galaxy from MDS-Pipeline fit
